Once in a lifetime opportunity to own a truly desirable one-off pro custom streetfighter! If you have EVER wanted to own the ultimate custom bike - THIS IS IT.

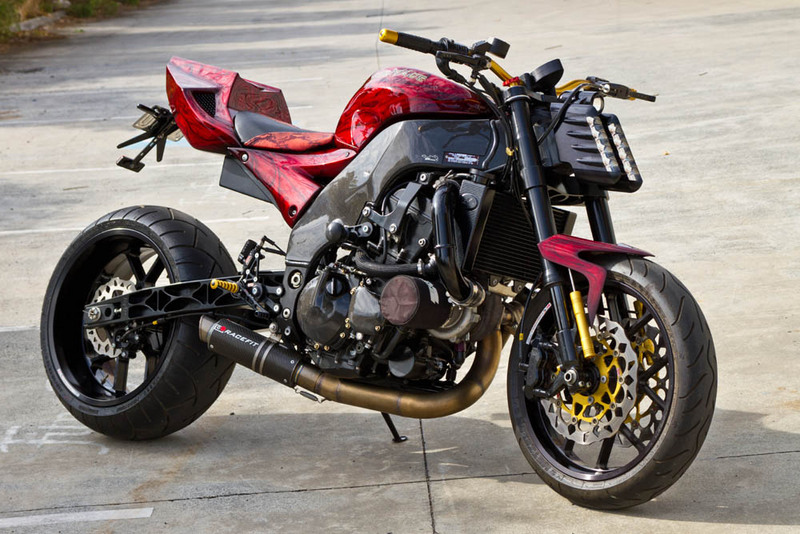

'CARNAGE' is based on a 2004 Kawasaki ZX10-R. It has appeared on the cover of multiple magazines both here and overseas, and was built to showcase a specific range of high quality custom products from a bike parts importer. Now it has completed it's formal duties it has to go to make way for the next project.
FULL SPEC:
ENGINE
998cc DOHC 4-cyl engine, standard head/cams/crank/injectors, ceramic coated forged pistons, Cometic 1.5mm head gasket, modified ZX10-R throttle bodies, Walbro fuel pump, Sard fuel pressure regulator, custom plenum/intercooler, custom stainless steel headers/exhaust, 'RACEFIT GROWLER' titanium/carbon fibre muffler, Garrett GT2871 turbo (modified to accept Tial external wastegate), Earls fittings/nylon braided turbo oil return line, Turbosmart blow-off valve, Factory Pro gear shift star, Goodridge heavy duty clutch plates, Orient Express clutch springs, Autronic SM4 ECU, Autronic 500R CDI, K&N pod filter, carbon fibre clutch/ignition/water pump covers, custom twin PWR core radiator with billet end tanks, AFAM 1/2" offset 17t front sprocket.
FRAME
2004 ZX10-R modified to fit wider chain offset, shortened sub-frame, custom underseat coolant overflow tank, carbon fibre frame covers, ABM billet rearsets, Sprint SXC steering damper, ABM billet rear brake master cylinder/reservoir, ABM billet frame sliders.
WHEELS/BRAKES/SUSPENSION
Front - modified 2004 ZX10-R forks anodised/powder coated, ABM billet top clamp, custom billet bottom clamp, Carrozzeria 'V-Track' 17"x3.5" wheel, Metzeler Sportec 120/60ZR17 tyre, ABM full floating 300mm wave discs, Tokico radial calipers, HEL braided lines, ABM billet master cylinder/lever, ABM billet clutch perch, ABM streetbars, ABM billet grips, ABM extended clutch cable.
Rear - One-off billet T5063 alloy swingarm - 6" over standard length, revalved 2004 ZX10-R rear shock, Carrozzeria 'V-Track' 18"x8.5" wheel, Metzeler Marathon 240/40VR18 tyre, Carrozzeria 43t alloy sprocket, RK 530 chain, HEL braided line, ABM billet 4 piston caliper on custom mount.
ELECTRICS
MotoGadget Mini LED dash/shift light/billet switch gear/digital ignition lock - all controlled by mUnit digital controller, custom billet headlight unit with 8 x 300 lumen high intensity LED low beams/1 x 100w halogen projector high beam, custom LED front indicators, ABM billet rear indicators, LED rear/tail lights, custom wiring loom.
BODYWORK
Megatec 'Vampirus' tail unit, 2004 ZX10-R seat pad re-covered in red/black snakeskin/carbon fibre, custom front guard with custom 'Moto GP linear actuator' mounts, 2004 ZX10-R fuel tank, billet race fuel cap, carbon fibre side panels.
PAINT
Satin black frame, powder coated swingarm/fork tubes, custom airbrushed 'CARNAGE' paintwork on tank/front guard/side panels/tail unit, custom gold leaf/carbon fibre 'CARNAGE' tank graphic.
Make no mistake - This bike is absolutely mental! It rides and handles like a dream - and when you open the throttle the entire world hits ffwd! When originally built it was tuned to 10PSI and was dyno'd at 267RWHP (i have video files of dyno runs for serious buyers to view). That was reduced to a very conservative 7PSI during the final build, and the bike now makes an extremely healthy 220RWHP.
This bike will absolutely eat anything on the road (2 wheels or 4) with ease. It is spine-chillingly hot to look at and ride.
Absolutely NO test pilots, so if you think you're going to pop over for a joyride - forget it. Any serious buyer knows that something as special as this speaks for itself.
All viewings will be handled by a third party.
Total build cost is well over $75K, so someone is going to get a MASSIVE bargain!
Advertisement
Ad Id | JBW3375023 |
Make | kawasaki |
Model | zx-10r (zx1000 ninja) |
Price | sold |
Odometer | 35,000 kms |
Colour | custom |
Engine | 1.0l |
Registration Expiry | Apr 2017 |
